LITHIUM BATTERY from China manufacturer - Guangxi Ramway New Energy Co.,Ltd

Payment Terms:	T/T
Place of Origin:	Guangxi, China (Mainland)

Product Detail

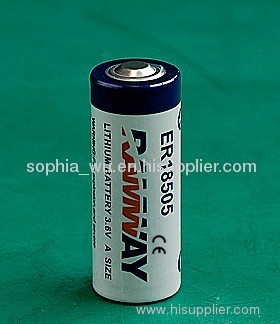

Model No.: ER18505H

Production Capacity: 20000/DAY

Delivery Date: AFTER PAYMENT

ER18505M: BATTERY

Means of Transport: Ocean,Land,Air

Packing: BY CARTON

ER18505H: LITHIUM BATTERY

Key Characteristic
(Test Temperature at 23±2℃)
Nominal Capacity(0.5mA -2.0V)^3500mAh
Nominal Voltage^^^^^^^^^3.6V
Max. Constant

Key Characteristics

High and stable operating voltage

Low self-discharge rate(≤1% after 1 year storage at 25℃)

Operating temperature(-60℃~ +85℃)

Hermetically glass-to-metal sealing

Stainless steel container

Non-flammable electrolyte and Bobbin type

Ul\CE\SGS and ISO9001:2008 recognized

Performance Parameters

(Test Temperature at 23±2℃)

Nominal Capacity(0.5mA -2.0V)…3500mAh

Nominal Voltage………………………3.6V

Max. Constant Current……………… 100mA

Max.Pulse Current………………… 200mA

Weight……………………...…………...32g

Volume…………………… Φ 18.5X50.5 mm

Workable Temperature…………..-60~+85 ℃
